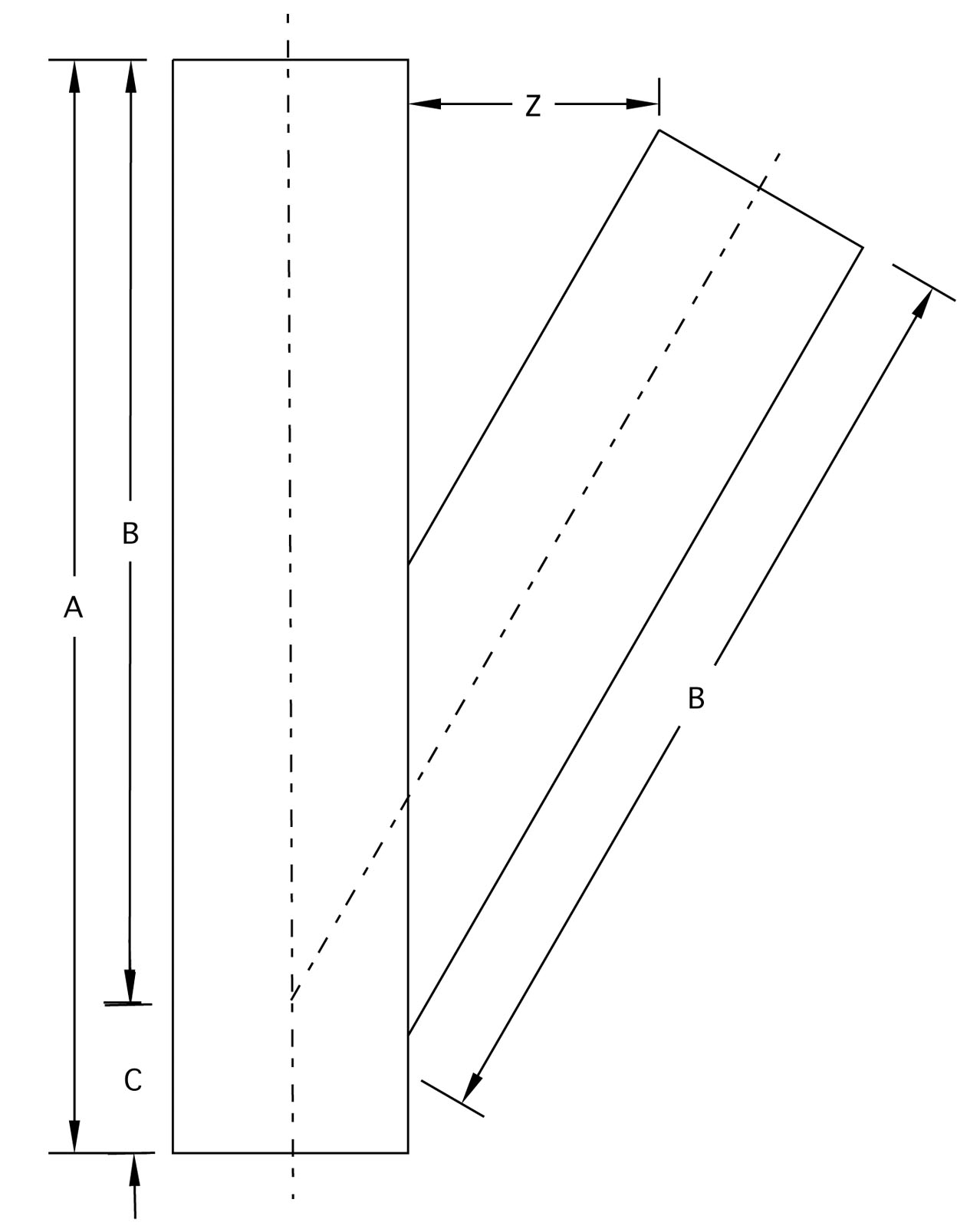

Run and branch are longer (than 45° lateral) to maintain approx 5″ span on most sizes at Dimension ‘Z’ to accommodate field welding.
| SIZE (IPS / OD) | DIMENSIONS | ||
| A | B | C | |
| 1-1/4 | 13 | 11 | 2 |
| 1-1/2 | 13 | 11 | 2 |
| 2 | 15 | 12-1/2 | 2-1/2 |
| 2-1/2 | 19 | 16 | 3 |
| 3 | 19 | 16 | 3 |
| 4 | 21 | 18 | 3 |
| 5 | 24 | 20-1/2 | 3-1/2 |
| 6 | 25-1/2 | 22 | 3-1/2 |
| 8 | 31-1/2 | 27 | 4-1/2 |
| 10 | 35 | 30 | 5 |
| 12 | 39-1/2 | 34 | 5-1/2 |
- Manufactured to the specs and tolerances of ASTM A774.
- Reducing laterals follow the same dimensions as straight laterals.
- Custom dimensions available upon request.
- 45º or 60º Laterals also available.
- Available in 304L, 316L, 317L, carbon steel, or other materials upon request.
- Available ends include buttweld, beveled, grooved, flanged, or Van Stone.
